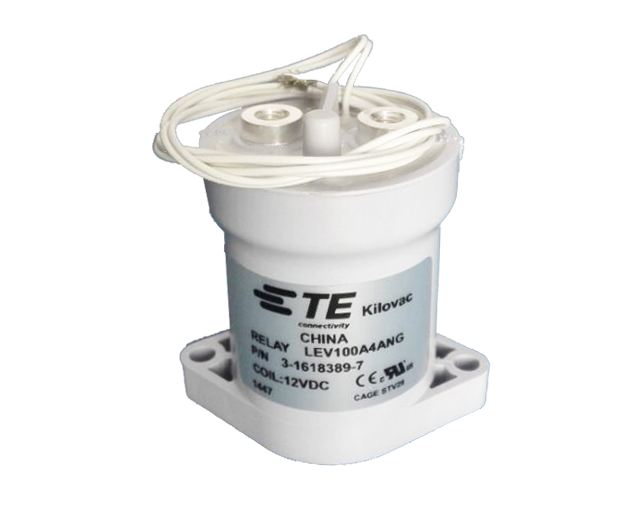

LEV100A4ANG

• LEV100A4ANG生产工艺优势及特点：
  Contact Arrangement: Main Contacts SPST-NO-DM (1 Form X) Voltage Rating: Main Contacts Switching (max) 900VDC Current Rating: Main Contacts Switching Continuous (Note 1) 100A Short Term -- 3 Minutes (Note 2) 200A Hot Switching Performance (Polarity sensitive) 50A make/break @ +400Vdc 50000 cycles 100A make/break @ +400Vdc 6000 cycles 100A make/break @ -400Vdc 1000 cycles 200A make/break @ +400Vdc 500 cycles 1000A break only @ +400Vdc 25 cycles 600A make only 25 cycles Maximum Short Circuit Current (1/2 cycle 60 Hz) 1250A (through closed contacts) Dielectric Withstand Voltage (Note 3) Between Open Contacts 5600Vrms/8000Vdc Contacts to Coil 2000Vrms/4000Vdc Insulation Resistance Terminal to Terminal / Terminals to Coil When New 100 megohms min. @ 500Vdc At End of Life 50 megohms min. @ 500Vdc Mechanical Life 1 million cycles
