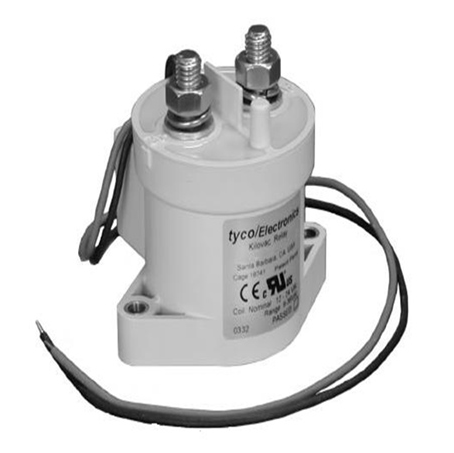

EV200AAANA

• EV200AAANA生产工艺优势及特点：
  Parameter Units Value for EV200 Series Contact Arrangement power contacts 1 Form X (SPST-NO-DM) Rated Operating Voltage VDC 12 - 900 Continuous (Carry) Current Typical A 500 @ 85°C 400 mcm conductors Consult Factory for required conductors for higher (500+ A) currents Make/Break Current at Various Voltages 1/ A See next page Break Current at 320VDC 1/ A 2000 1 cycle 3/ Contact Resistance Typ. (@200A) mohms 0.2 Load Life Cycles See next page Mechanical Life Cycles 1 million Contact Arrangement auxiliary contacts 1 Form A (SPST-NO) Aux. Contact Current Max. A 2A @ 30VDC / 3A @ 125VAC Aux. Contact Current Min. mA 100mA @ 8V Aux. Contact Resistance Max. ohms 0.417 @ 30VDC / .150 @ 125VAC Operate Time @ 25°C Close (includes bounce) Typ. ms 15 Bounce (after close only) Max. ms 7 Release (includes arcing) Max @ 2000A ms 12 Dielectric Withstanding Voltage Vrms 2200 @ sea level (leakage <1mA) Insulation Resistance @ 500VDC megohms 100 2/ Shock 11ms 1/2 sine peak operating G 20 Vibration sine 80-2000Hz. peak G 20 Operating Ambient Temperature °C -40 to +85 Weight Nominal lb.(kg) .95 (.43)
