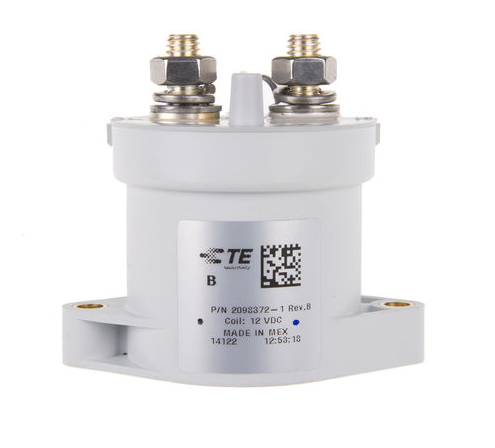

EVC500

• EVC500生产工艺优势及特点：
  Parameter Units Values Contact Arrangement, power contacts Rated Operating Voltage Continuous (Carry) Current, Typical Make/Break Current at Various Voltages1 Break Current at 450VDC1 Contact Resistance, Typ. (@200A) Load Life Mechanical Life Operate Time @ 25oC, Max. Close (includes bounce), Typ. Bounce (after close only), Max. Release (includes arcing), Max @ 2000A Dielectric Withstand Voltage2 Insulation Resistance2 @ 2920VDC Shock, peak, Coil Energized Vibration, sine, 80-2000Hz, peak Operating Ambient Temperature Weight, Nominal 1 Form X (SPST-NO-DM) 100-450 (450-900 is load dependant) 500 @ 85oC, 400 mcm conductors See page 3 1,560, 1 cycle 0.2 See page 3 500,000 203 15 71 2 2,920 @ sea level (leakage <1mA) 15 0 20 -40 to +85 .95 (.43)
